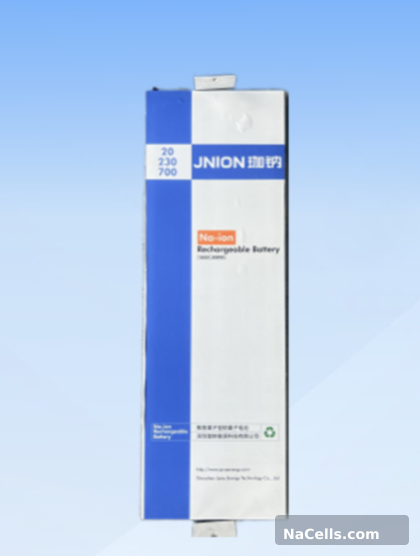

JANA-SIB-190Ah cell
Model: JANA-SIB-160Ah
CellsNFPP00
Specifications
| Nominal Capacity | 190Ah |
|---|---|
| Nominal Voltage | 2.9V |
| Maximum Charging Voltage | 3.4V |
| Discharge Cut-off Voltage | 1.5V |
| Maximum Operating Current Charge | 190A Discharge 190A |
| Specification | Cycle Life (80% Capacity Retention) ≥6000 cycles @25℃ |
| Operating Temperature Charge | 0~60℃ Discharge: -40-60℃ |
| Weight | 5.5kg |
| Dimensions (L*W*T) (mm) | 700±0.5 230±0.5 20±0.5 |
