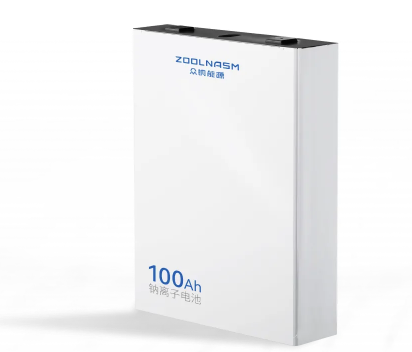

B-1-2 Prismatic Cell
Model: B-1-2
Specifications
| Nominal Capacity | 100Ah |
|---|---|
| Specification | 54173205 |
| Cell Form | Prismatic |
| Chemistry System | NFS |
| Nominal Voltage | 3.6V |
| Energy Density | 100Wh/kg |
| Rate Performance (max.) | 1C/2C |
| Cycle Life | 4000 cycles |
| Operating Temperature (Charge) | -25~55°C |
| Operating Temperature (Discharge) | -40~55°C |
Description
Capable of 10C high-rate discharge, meeting the demands of scenarios requiring instantaneous high current. Whether during start-stop moments or high-power output, it handles with ease, unleashing the ultimate energy. Supports a maximum 10C discharge, and passes a series of safety tests including overcharge, over-discharge, crush, and nail penetration without catching fire or exploding.
