Xieneng Technology - 1500V-2500V High-Voltage Energy Storage BMS
BMS00
Specifications

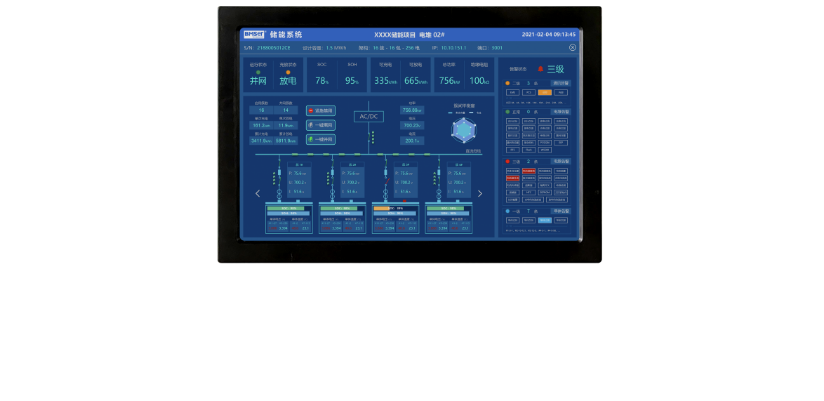

| Specification | The master controller BAU adopts a dual MCU quad-core processor with a user-friendly human-machine interface, capable of device status detection and inspection, supporting full lifecycle second-level data storage and analysis, triple-network redundant communication, and compatible with Modbus-TCP, IEC104, and IEC61850 protocols, enabling cabinet-level management. |
|---|---|

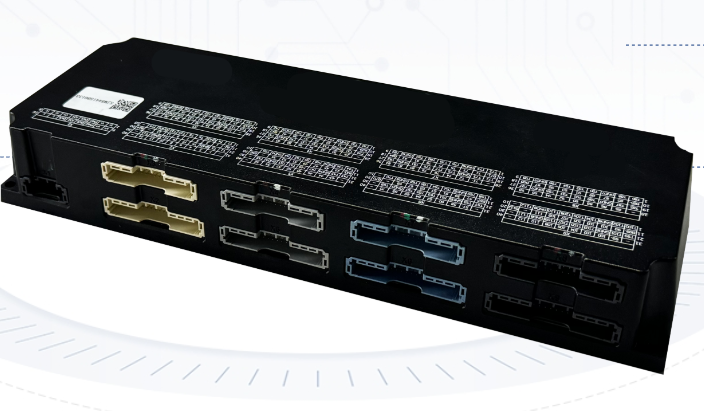

| The main controller BCU supports high-speed Ethernet transmission, features multiple redundancy protections, adopts a | 2000V+ reinforced insulation design, complies with various national safety regulations, and supports applications at altitudes up to 5500 meters. |

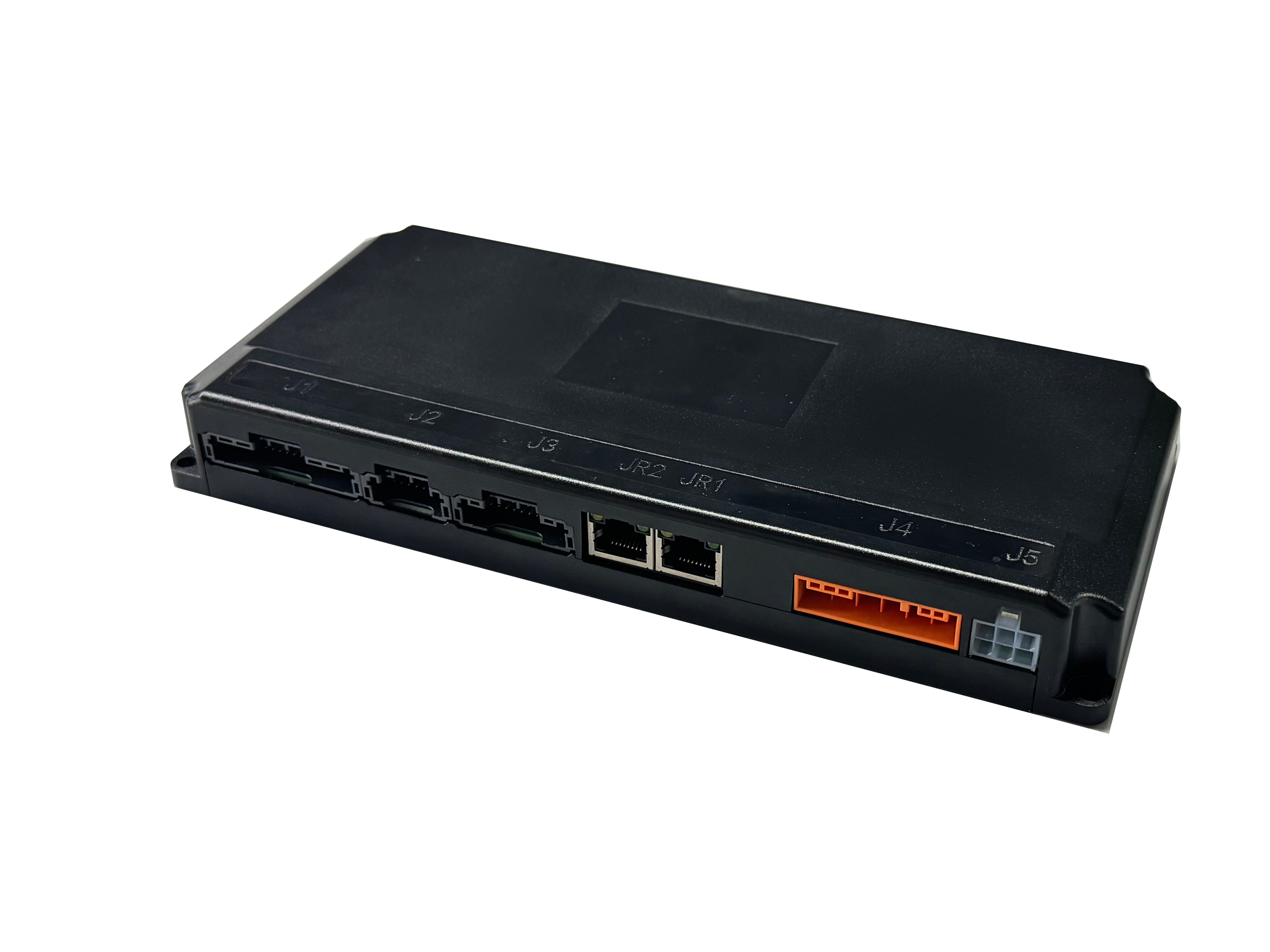

| The slave controller BMU supports | 8-112 series acquisition and N+2 full-temperature acquisition, with active and passive balancing functions, capable of fan speed regulation, fault diagnosis, and MSD status detection. It supports both air cooling and liquid cooling for multi-scenario use and is equipped with multiple redundancy protection measures. |
